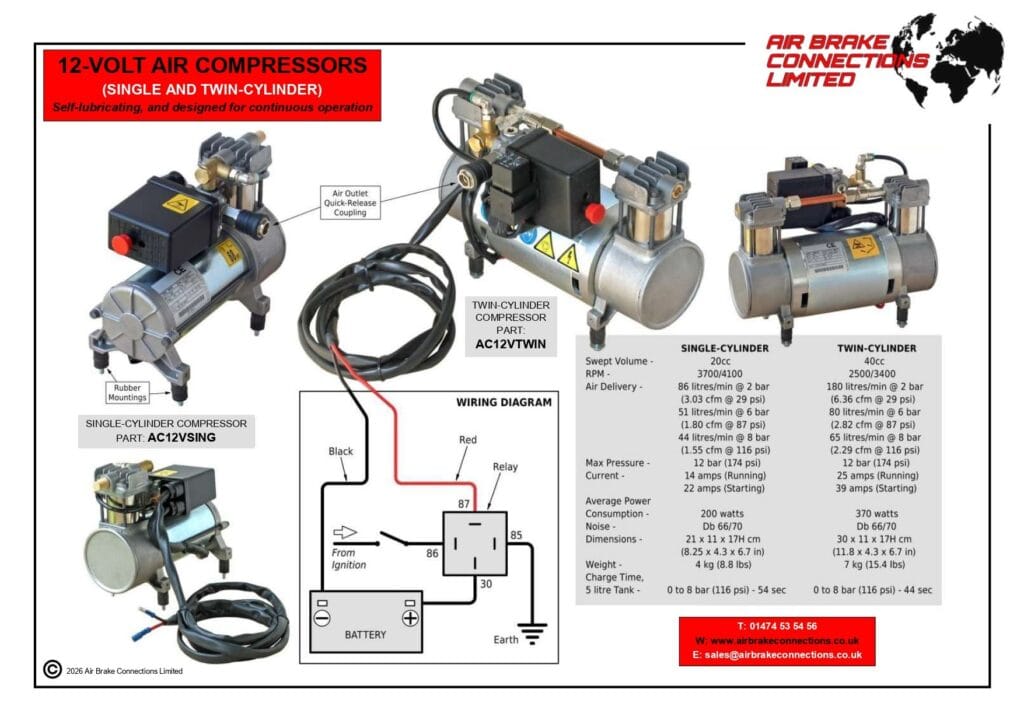

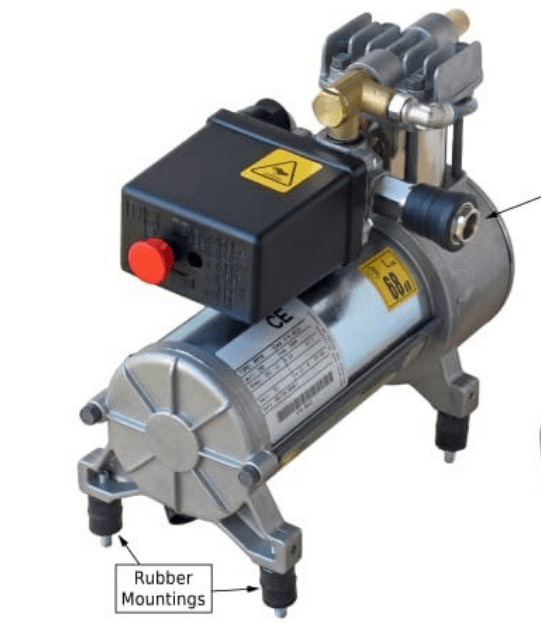

12V Air Compressor – Single 20cc

Single Cylinder
Swept Volume – 20cc
RPM – 3700/4100
Air Delivery –
86 litres/min @ 2 bar (3.03 cfm @ 29 psi)
51 litres/min @ 6 bar (1.80 cfm @87 psi)
44 litres/min @ 8 bar (1.55 cfm @116 psi)
Max Pressure – 12 bar (174 psi)
Current 14 amps running
22 amps standing
Average Power Consumption – 200 watts
Noise – Db 66/70
Dimensions 21 x 11 x 17H cm  (8.25 x 4.3 x6.7 in)
Weight – 4kg (8.8 lbs)
Charge Time 5 litre tank – 0 to 8 bar (116 psi) – 54 seconds
Part number – AC12VSING

Call Now to order 01474 53 54 56
