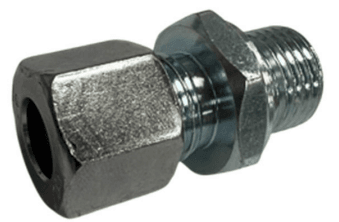

Compression Fittings – Male Stud Couplings
Description
| Part Ref |
Thread Size |
Tube OD |
|
| MSC26Z |
1/8” |
6 mm |
| MSC28Z |
1/8” |
8 mm |
| MSC210Z |
1/8” |
10 mm |
| MSC46Z |
1/4” |
6 mm |
| MSC48Z |
1/4” |
8 mm |
| MSC410Z |
1/4” |
10 mm |
| MSC412Z |
1/4” |
12 mm |
| MSC610Z |
3/8” |
10 mm |
| MSC612Z |
3/8” |
12 mm |
| MSC812Z |
1/2” |
12 mm |
| MSC815Z |
1/2” |
15 mm |
| MSC106Z |
M10 x 1 |
6 mm |
| MSC108Z |
M10 x 1 |
8 mm |
| MSC1010Z |
M10 x 1 |
10 mm |
| MSC126Z |
M12 x 1.5 |
6 mm |
| MSC128Z |
M12 x 1.5 |
8 mm |
| MSC1210Z |
M12 x 1.5 |
10 mm |
| MSC1212Z |
M12 x 1.5 |
12 mm |
| MSC148Z |
M14 x 1.5 |
8 mm |
| MSC1410Z |
M14 x 1.5 |
10 mm |
|
|
|
| Part Ref |
Thread Size |
Tube OD |
|
| MSC1412Z |
M14 x 1.5 |
12 mm |
| MSC1415Z |
M14 x 1.5 |
15 mm |
| MSC166Z |
M16 x 1.5 |
6 mm |
| MSC168Z |
M16 x 1.5 |
8 mm |
| MSC1610Z |
M16 x 1.5 |
10 mm |
| MSC1612Z |
M16 x 1.5 |
12 mm |
| MSC1615Z |
M16 x 1.5 |
15 mm |
| MSC1616Z |
M16 x 1.5 |
16 mm |
| MSC226Z |
M22 x 1.5 |
6 mm |
| MSC228Z |
M22 x 1.5 |
8 mm |
| MSC2210Z |
M22 x 1.5 |
10 mm |
| MSC2212Z |
M22 x 1.5 |
12 mm |
| MSC2215Z |
M22 x 1.5 |
15 mm |
| MSC2216Z |
M22 x 1.5 |
16 mm |
| MSC2218Z |
M22 x 1.5 |
18 mm |
