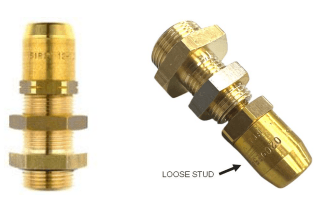

803 Series Stud Bulkheads

SKU: 803-series-stud-bulkheads Category:

Description

Part Ref Thread
Size
Tube
Size (mm)
Body
(mm)
Thread F
Size (mm)
803212 M12 x 1.5 6 x 1 18 x 1.5 12 x 1.5
803216 M16 x 1.5 6 x 1 18 x 1.5 12 x 1.5
803222 M22 x 1.5 6 x 1 18 x 1.5 12 x 1.5
803312 M12 x 1.5 8 x 1 18 x 1.5 12 x 1.5
803316 M16 x 1.5 8 x 1 18 x 1.5 12 x 1.5
803322/16 M22 x 1.5 8 x 1 16 x 1.5 10 x 1
803322 M22 x 1.5 8 x 1 18 x 1.5 12 x 1.5
803412 M12 x 1.5 10 x 1.25 18 x 1.5 12 x 1.5
803416 M16 x 1.5 10 x 1.25 18 x 1.5 12 x 1.5
803422/16 M22 x 1.5 10 x 1.25 16 x 1.5 10 x 1
803422 M22 x 1.5 10 x 1.25 18 x 1.5 12 x 1.5
803512 M12 x 1.5 12 x 1.5 18 x 1.5 12 x 1.5
803516 M16 x 1.5 12 x 1.5 18 x 1.5 12 x 1.5
803522 M22 x 1.5 12 x 1.5 18 x 1.5 12 x 1.5
803616 M16 x 1.5 15 x 1.5 22 x 1.5 16 x 1.5
803622 M22 x 1.5 15 x 1.5 22 x 1.5 16 x 1.5
803716 M16 x 1.5 16 x 2 22 x 1.5 16 x 1.5
803722 M22 x 1.5 16 x 2 22 x 1.5 16 x 1.5
803816 M16 x 1.5 18 x 2 22 x 1.5 16 x 1.5
803822 M22 x 1.5 18 x 2 22 x 1.5 16 x 1.5
